What Is the Difference Between Cassava Grinder, Hammer Crusher and Fine Milling Machine?

In cassava processing, crushing is an indispensable step. Selecting the right cassava grinding equipment directly affects the quality and yield of the final product. Henan Jinrui will introduce you to three common types of cassava crushing equipment available on the market: Cassava Grinder, Hammer Crusher, and Fine Milling Machine.

This article compares their working principles and applications, helping you clearly understand the differences between cassava grinder, hammer crusher and fine milling machine to optimize your cassava processing line.

1. Cassava Grinder

The cassava grinder is mainly used for processing peeled fresh cassava roots. When fresh cassava enters the machine, the serrated grinding components tear, scrape and crush the cassava, breaking the cellular structure without over-crushing the material.

The final output is cassava pulp with a certain fibrous structure. This crushing effect is especially suitable for garri production, because garri requires cassava mash with proper particle size and texture, rather than ultra-fine powder.

Therefore, the cassava grinder is commonly used as the core crushing equipment in garri production lines. It is also suitable for small and medium-scale wet cassava flour processing plants.

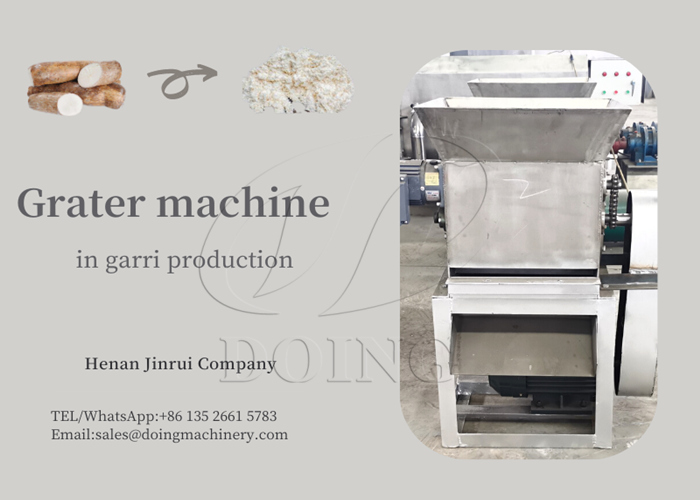

Cassava grater

2. Hammer Crusher

The hammer crusher uses high-speed rotating hammers to impact cassava material against the breaker plate. The material is crushed repeatedly inside the crushing chamber until it passes through the screen mesh at the bottom of the machine.

Different from the cassava grinder, the hammer crusher has stronger crushing force and a larger processing capacity. The particle size of the final output can be adjusted by changing screens with different apertures. Generally, the output size ranges from about 5–20 mm, producing coarse cassava pulp or uneven granular particles.

The hammer crusher can be used for fresh cassava roots and also dried cassava chips. It is more suitable for large-capacity garri processing lines and large cassava flour processing lines where higher output is required.

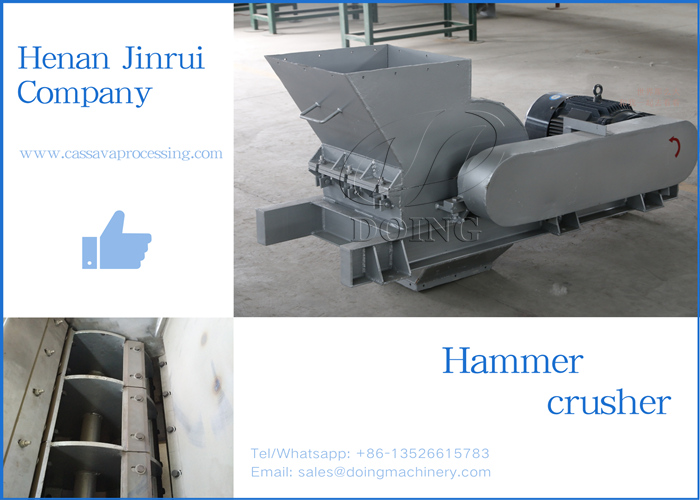

Henan Jinrui hammer crusher

3. Fine Milling Machine

The fine milling machine is used for further crushing and refining pre-processed cassava materials, such as dried cassava chips, coarse cassava flour, crushed cassava chunks or dried garri.

Different from the cassava grinder and hammer crusher, the fine milling machine is designed for fine powder production. Through high-speed impact, grinding or air classification, it can achieve finer particle size. Equipped with screens or cyclone systems, it can help control the fineness of the final product.

The fine milling machine is mainly used in dry cassava flour production, final garri powder grinding, and other applications requiring fine cassava powder. It is not suitable for directly processing fresh cassava roots.

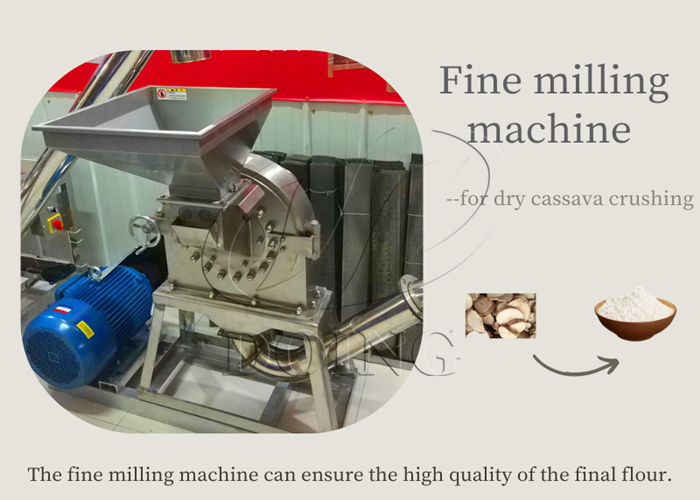

Henan Jinrui fine milling machine

Practical Guidance for Cassava Processing Lines

Based on the differences between the cassava grinder, hammer crusher, and fine milling machine described above, here is a quick guide for different applications:

Garri production (fresh cassava)

Small/medium scale → Cassava grinder

Large scale → Hammer crusher

Cassava starch production (fresh cassava)

Rasper is recommended (not covered here)

Cassava flour production (fresh cassava)

Small/medium scale → Cassava grinder

Large scale → Rasper

Dry material processing (dried chips, coarse flour, fried garri → fine powder)

Use Fine milling machine (install before sieving for higher fineness)

In short, the key difference among the three machines comes down to three factors: raw material (fresh vs. dry), production capacity, and final particle size. The cassava grinder is for fresh cassava wet crushing, the hammer crusher for higher-capacity coarse crushing, and the fine milling machine for dry material fine grinding. Choosing the right crusher makes a real difference in your line’s efficiency and product quality.

Whether you need a cassava grinder, hammer crusher, or fine milling machine, Henan Jinrui has you covered. Contact us today for expert advice and a quotation.
